Beschreibung des Aggregat 4
Description of the Aggregat 4 (A4 or V2 Rocket)

My impression of the A-4 as a student of the history of technology
As in many other technical areas, the most advanced technologies are developed initially for destructive means. The A4 was the first real rocket and the technology (and the engineers developing it) went on to pioneer the American space program and play important roles in the Russian space development as well. In the history of technology this was a pioneering effort - and like much of the other war technology developed by Germany, United States, Great Britain, Japan, and Russia - it was applied to improve the course of man eventually.

From the Deutsches museum description
Die erste Flussigkeits Großrakete das >>Aggregat 4<<, wurde inner halb von fünf Jahren bis zur Einsatzreife entwickelt.

The first large, liquid-fueled rocket "the Aggregat 4", was developed over a period of five years before being committed to combat.

Diese Rakete gilt als Vorgängerin aller später für die Raumfahrt einegesetzen Trägerraketen (Trägersystem).
This rocket is held to be the predecessor of all subsequent launch rockets (launch vehicles) used in space flight projects.

Zum erstenmal wurde fünffache Schallgeschwindigkeit erreicht.
Five times the speed of sound was acheived for the first time.

Der Bau von Großraketen in hohen Stückzahlen und der Einsatz von System-Technik und Management war beispielhaft für später Entwicklungen.
The building of giant rockets in large numbers and the employment of system technology and management set an example for later developments.

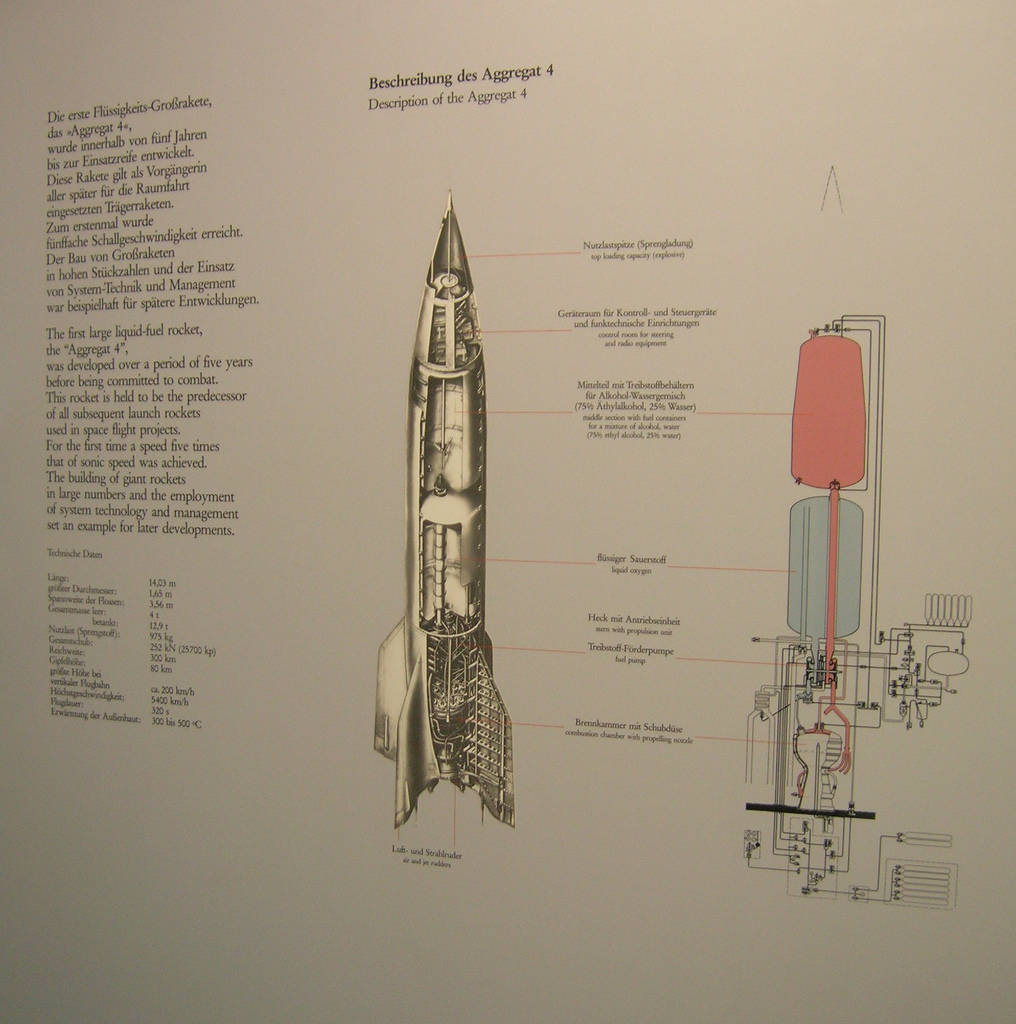

Components from diagram
Nutzlastspitze (Sprengladung)
Top loading capacity (Upper payload??) (Explosive charge)

Geräteraum für Kontroll- und Steurgeräte
und funktechnische Einrichtungen

control room for steering and radio equipment
Mittleteil mit Treibstoffbehaltern für Alkohol - Wassergemisch
(75% Athylalkohol, 25% Wasser)
Middle section with fuel containers for Alcohol-Water mix
(75% Alcohol, 25% Water)

flüssiger Sauerstoff
liquid oxygen

Heck mit Antriebseinheit
stern with propulsion unit
Treibstoff -Forderpumpe
Fuel pump

Brennkammer mit Schubdüse
combustion chamber with propelling (propellant) nozzle

Luft- und Strahlruder
air and jet rudders

Some technical German and English
Raumfahrt = Space
Trägersystem = Launch vehicle
Schallgeschwindigkeit = Speed of sound
Entwicklung = development
flüssiger Sauerstoff = liquid oxygen
